Vishvakarma pallet conveyor systems are strong, durable and engineered to the highest quality standards. Our pallet conveyor systems are durable and well-known for their high performance, making them ideal for a wide range of industries. Our pallet chain conveyors and pallet roller conveyors can be customized to fit Australian, European, or custom-sized pallets.We can provide a complete pallet conveyor system to suit your application in combination with shuttle carts, pallet stackers, pallet turntables, and pallet dispensers.Our engineers are experienced in designing pallet handling systems for a variety of applications and can assist with the layout and selection of equipment to optimize your pallet handling system. For Pallet Jack Conveyor system series, No load is too heavy, Completely variable program for the transport and storage of heavy pallets and pallet boxes.
- Simple structure, stable product conveying

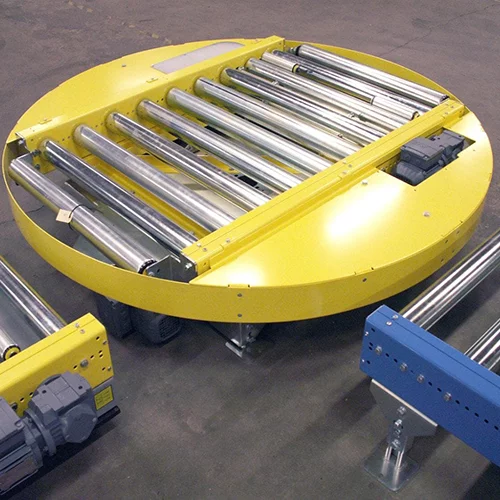

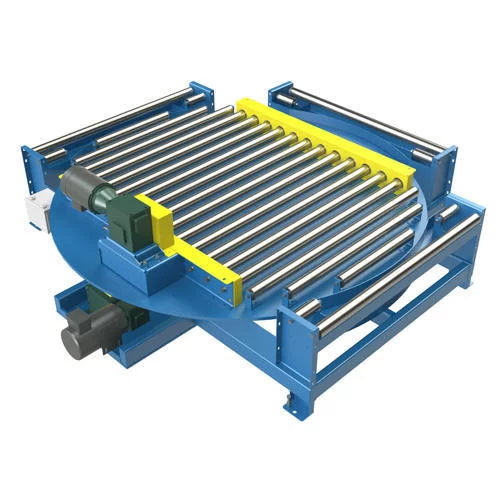

- Designed to change the direction of pallet travel by rotation of the pallet through any angle from 90° up to 180°
- Reduce traffic and Improve warehouse flow
- Compliant with international safety standards
- Modular design, easy installation and maintenance
- provide the highest level of safety, ergonomics and productivity for large volume
- Gentle handling reduces product damage
- Release forklift equipment to be used for other tasks
- Adjustable support leg
- Motor mounting position
- Fixed guide
- Configurable Conveyor Layout
- Automation support
Options
- Excellent ability to sort pallet groups into specific areas for processing and shipping.
- Pallet handling application
- Can be used with other technologies
- Warehouses and distribution automation
- Easily assemble a modular application or an application for variable site modification
- The accumulation can be used as a process buffer
- Modern, Heavy duty and ergonomic design
- Rotation speed available 2 RPM & 4 RPM
- Up to 174 pallets per hour when rotating at 90°
- Standard Widths from 1000mm to 1500mm
- Standard Lengths from 1200mm to 6000mm
- Frame Thickness 5mm
- Toal Load capacity from 500 kg to 1500 kg
- Roller Pitch available: 100mm, 150mm, 200mm
- Rollers of 76mm or 89mm in diameter with single or double sprocket
