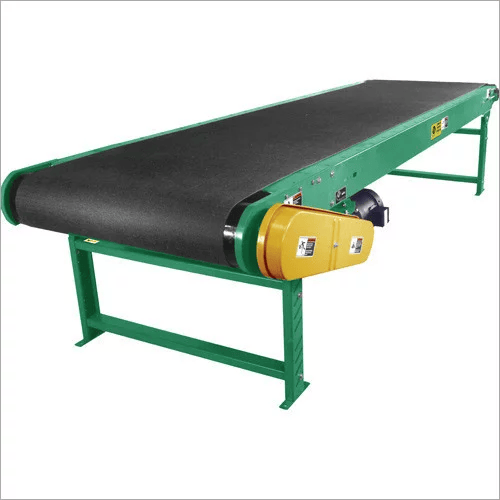

Vishvakarma's most economical slider bed belt conveyor. It provides a reliable way of transporting products in the applications like assembly, sorting, testing, and packaging. Because of their simple, cost-effective construction, these sliding bed belt conveyors are the most popular of all powered conveyors. It is the most suitable application that can handle any product from one end to the other.
- Frame with Rigid & Robust design
- Single structure open design frame
- Universal slots fit with industry-standard hardware
- Strong and long-lasting powder-coated bedplates
- Improved driving and idler tails for quick belt installation and change in shaft positions
- Speeds up to 60 mpm
- Adjustable Guide arrangement
- Wide range of belt options available
- High-quality parts specially designed for longer life
- Shorter delivery period with standard conveyor options
- Adjustable support leg
- Motor mounting position
- End stopper
- Fixed guide and Fully adjustable Guide
- Feed and Discharge chute
Options
- Small/Medium/Heavy Part Transfers/Handling
- Infeed and Outfeed of Parts/Packages
- Assembly, both automated and manual
- Applications for simple transfer
- Configurable with packaging machine
- Widths from 75mm to 1500mm
- Lengths from 750mm to 15000mm
- Load capacity up to 250 kg
- Plain belt and V – Guide options
- Flat Belt End Drive
- Speeds upto 60 m/min
- Roller Dia. from 50mm to 100mm
- Optional one side knife-edge 16mm dia. Roller
- Optional common drive – Direct / Transmission
